SEADA video wall controllers,
matrix and retractable monitors.
SolarWall Micro FPGA controllers, G44-HDMI 4×4 4K matrix and the full SEADA retractable / foldable monitor range — supplied and integrated pan-India.
UK-built controllers, matrix and motorised conference monitors.
Three real ranges, full datasheets.
All-in-one Crossbar express FPGA controller.
FPGA-based — no PC vulnerabilities, no Windows reboots. 8 HDMI inputs scaling to 8 / 12 / 16 HDMI outputs, with 2- or 4-window overlay / picture-in-picture. Custom pre-set layouts, layout looping, multi-client and user access control. Multiple video walls in one system; arbitrary window positioning.
- Architecture
- Crossbar express FPGA — virus-free, no PC dependency
- Inputs
- 8 × HDMI
- Outputs
- 8 / 12 / 16 × HDMI (model dependent)
- Overlay
- 2- or 4-window overlay / PIP
- Layouts
- Custom pre-sets, layout looping, multi-client, user access control
- Video walls
- Multiple video walls per system; arbitrary window positioning
- HDCP
- Compliant
- Chassis
- 1.5U 19" · 482 × 350 × 66 mm
- Control
- RS232 or 10/100/1000 Ethernet
- Power / temp
- AC 100–240 V · 0–40 °C
- Warranty
- 2 years
- Ideal use
- Retail digital signage, broadcast monitoring, transport hubs, small-to-medium control rooms

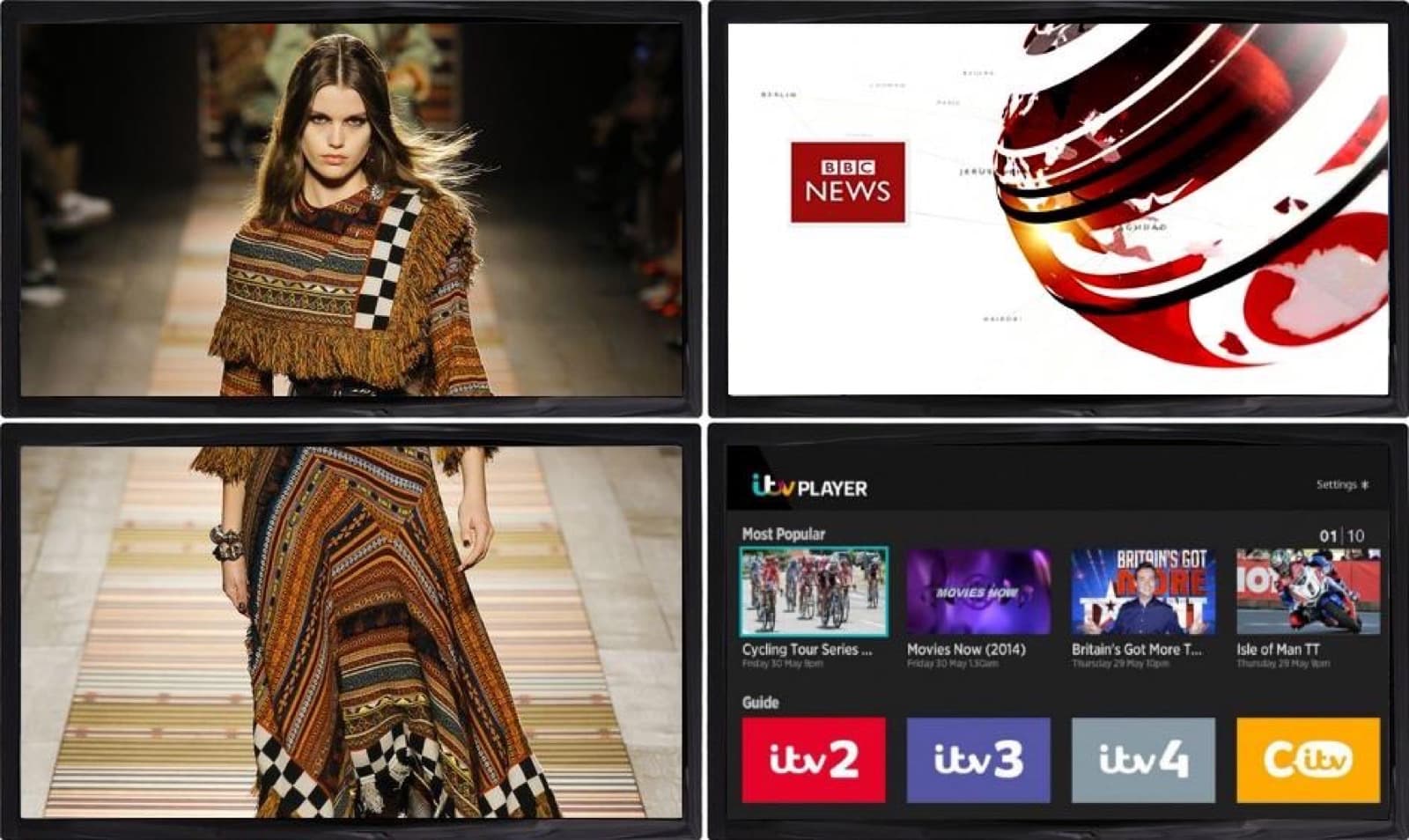

Three jobs, one 1U chassis.
4 × HDMI 2.0 inputs and 4 × HDMI 2.0 outputs — each up to 4K @ 60 Hz 4:4:4. Modes: video wall, seamless matrix switching, presentation switching. Independent 8 × 8 IR matrix; CEC and EDID management. Audio embed / de-embed. Customisable OSD and remote display tuning. Runs standalone post-config.
- I/O
- 4 × HDMI 2.0 in · 4 × HDMI 2.0 out · up to 4K @ 60 Hz 4:4:4
- Modes
- Video wall · seamless matrix · presentation switcher
- IR matrix
- Independent 8 × 8
- Management
- CEC + EDID
- Audio
- Embed / de-embed — 4 analog in, 4 analog out, 4 digital out
- OSD / tuning
- Customisable OSD and remote display tuning (contrast, saturation, position)
- Control
- Front panel · IP / serial · 3rd-party controllers · standalone post-config
- Chassis
- 1U · 480 × 245 × 44.55 mm
- Power
- 110–240 V AC · 60 W max
- Warranty
- 2 years
- Ideal use
- Meeting and conference rooms, broadcast workflows, digital signage, security monitoring rooms
13.3" to 22", FHD or 4K, touch or non-touch.
The full SEADA conference-monitor catalog — for boardrooms, council chambers, courtrooms, auditoriums, classrooms, hotel reception desks and broadcast / control desks. Tabletop stays clean; the screen only appears when needed.
0–45° tilt, motorised retractable mic, content-share button — for auditoriums and lecture halls.
Aluminium body, integrated PC USB, two-button control, content sharing.
16° auto inclination, optional touch, RS485 + remote, integrated PC power switcher.
0–90° adjustable angle, touch screen, retractable motorised mic — for assembly chambers.
All-in-one 13.3" monitor + PC + speaker + mic + clock + 8.8" ID TFT, HDCP-compliant, secure front nameplate.
Compact 13.3" motorised retractable monitor with input source switcher and capacitive touch buttons.
Detachable 13" tablet, auto Wi-Fi / Ethernet handover for paperless conferencing.
0–110° adjustable, built-in keyboard / mouse housing, optional touch.
Motorised foldable, fine powder-coated finish, optional touch.
Where SEADA typically lands.
Bengaluru commissioning, India delivery.
- Multi-brand context — FPGA vs PC controllers
We pair SEADA controllers and matrix with Planar PFI / VDS LED, LG UH5Q / UL5Q signage, Samsung pro displays and Drita DT4000 PC-based controllers — and tell you when SEADA's FPGA architecture beats a Windows-based controller on stability and security.
- Bengaluru-based commissioning
We cable, configure layouts, set EDID / CEC and tune OSD on-site, then leave the system in standalone mode where the brief calls for it.
- Conference-room delivery, table cut-outs included
Retractable-monitor installs require precise table cut-outs, cable management and mic / content-share wiring — handled in-house.
- AMC + on-site response across Karnataka
Project-based service pan-India.
- Single-supplier accountability
SEADA hardware, displays, structured cabling, controllers and AMC under one PO.
The short answers.
Samsung
Pro displays driven by SEADA SolarWall Micro / G44-HDMI.
LG
UH5Q / UL5Q signage paired with SEADA G44-HDMI distribution.
Panasonic
Projectors and pro displays in rooms switched by G44-HDMI.
MAXHUB
IFPs that take confidence-monitor feeds from a SEADA matrix.
Planar
Premium fine-pitch LED driven by SEADA controllers.
Drita
DT4000 Windows / FPGA controllers — when scenario authoring beats fixed layouts.
Video wall controllers
Where SolarWall Micro sits in our controller line-up.
HDMI matrix switchers
G44-HDMI 4×4 4K@60 video wall + matrix + presentation.
Retractable monitors
FG, FM, M, G, SC13, SC17, SC-FZW — full SEADA range.
Control room solutions
Where SolarWall Micro typically lands in a NOC build.
Conference room AV
G44-HDMI and retractables in hybrid meeting rooms.
LED video wall — Bangalore
LED + controller + matrix bundles across the city.
Drita
DT4000 controllers — paired with SEADA via Drita's Asia partnership.
Planar
Premium fine-pitch LED that SEADA controllers drive.
Send the I/O count and the wall layout —
we'll quote a SEADA chassis to suit.
Number of sources, output count, room type, and whether it's 24/7 or office-hours is enough for a first-pass BoQ within one working day.
